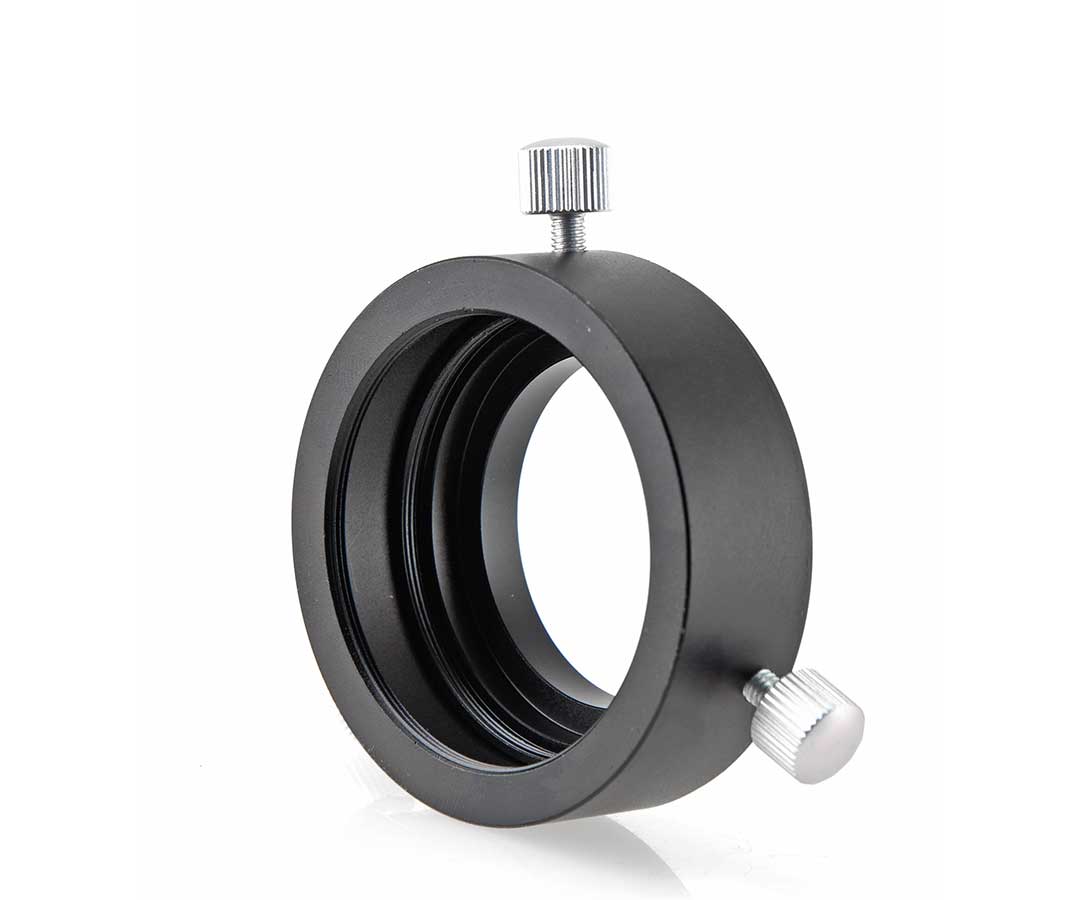

TS Optics Rotation Adapter, Filter Holder and Quick Coupling - M42 to T2 thread

TS 360 rotation system, holder for 2″ filter and quick coupling

This adapter is a universal talent, it solves several challenges at once and that with only 19 mm length. Below are just a few of the possible applications. This rotation adapter was developed for you from practical experience, by hobby astronomers for hobby astronomers.
♦ Adaption from M42x1 to T2 - this allows you to connect astro cameras with T2 directly to camera objectives with the M42x1 thread
♦ 360 rotation - this allows you to determine the image section. When you clamp the adapter, it automatically centers itself through the tapered groove. Tilting is impossible.

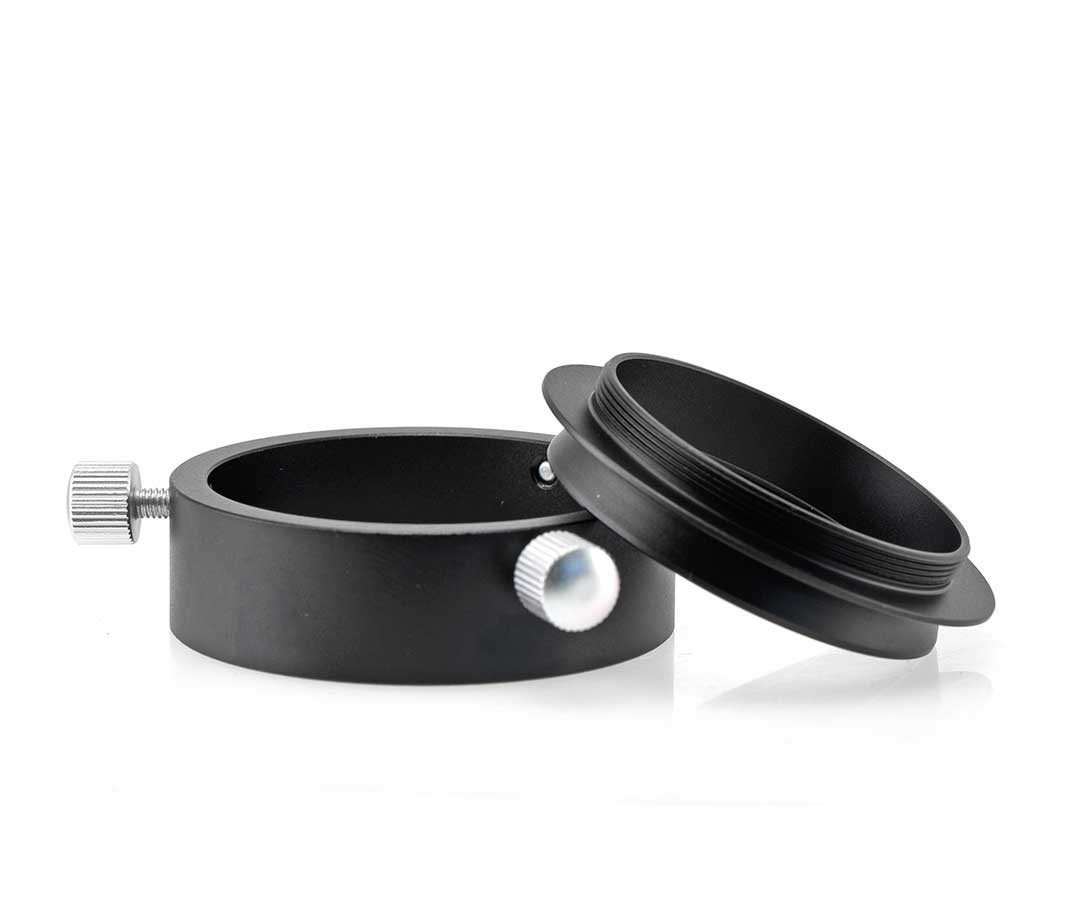

♦ Quick release - you can disconnect the camera from the telescope in seconds, for example to change batteries. The cables from the camera do not get tangled, the tedious unscrewing is no longer necessary.
♦ 2″ filter holder - the connection adapter offers a 2″ filter thread. There is enough space in the adapter for all filter cells, even slightly higher
♦ Camera dust cover - the front connector can also remain on the camera and the filter protects the inside of the camera from dust.
♦ Only 19 mm short - so you can use the adapter with many correctors
♦ For the adapter we also offer connectors with other sizes, so that the rotation adapter can grow with your accessories.

Practical tip:

If you separate camera and telescope, for example because you want to use a different camera or telescope, one opening remains open. To prevent dust from entering, you can simply fit the corresponding counterpart of a second TSROTM42-T2 with a matching cover (currently only for T2, linked in the accessories section) and use it as a cover for the opening.
