  • ZWO ASI178 USB3.0 Color CMOS Camera - Chip D=8.92 mm
  • ZWO ASI178 USB3.0 Color CMOS Camera - Chip D=8.92 mm

    • Číslo produktu: ASI178MC
    • Výrobce: ZWO
    • Váha dodávky: 0.12 kg
    1x

    Cena s DPH: 11 715,-
    1-2 týdny
    Hlídat dostupnost - ZWO ASI178 USB3.0 Color CMOS Camera - Chip D=8.92 mm
    Chci být informován až bude zboží skladem

    *

  • Tento produkt je dostupný také v následujících variantách:
     Barevná kamera ZWO ASI715MC Color USB3.0 Astro Camera - Sensor D=6.45 mm, 1.45 µm Pixels 7 750 Kč
     ZWO ASI224MC Color Camera 1,2M Pixel - Sensor D=6,09 mm 8 895 Kč
     ZWO ASI662MC Color USB3.0 Astro Camera - Sensor D=6.45 mm, 2.90 µm Pixels 9 395 Kč
     ZWO ASI678MC Color USB3.0 Astro Camera - Sensor D= 8.86 mm, 2.0 µm Pixel Size 10 995 Kč
     Barevná kamera ZWO ASI385 USB3.0 Color CMOS Camera - Chip D=8.35 mm 11 395 Kč
     ZWO ASI178 USB3.0 Color CMOS Camera - Chip D=8.92 mm 11 715 Kč
     Barevná kamera ZWO ASI482MC USB3.0 Color CMOS Camera - Sensor D= 12.86 mm, 5.8 µm Pixel Size 13 995 Kč
     ZWO ASI585MC Color USB3.0 Astro Camera - Sensor D=12.84 mm, 2.9 µm Pixel Size 13 995 Kč

ZWO ASI178MC USB-3.0 Color Astro Camera with 6.4MP CMOS Sensor

The ZW Optical ASI178MC camera is equipped with a large 1/1.8" sensor. Through the new SONY STARVIS and Exmor R technology, images with very little noise are generated, with high sensitivity at the same time. The result is a versatile camera which delivers excellent results for different requirements. The ASI 178 is especially suitable for:

♦ lunar and planetary photography
♦ 170° all-sky images and weather observation (with the 2.5 mm objective)
♦ solar photography (with suitable filter)
♦ photography of brighter nebulae and star clusters - exposure times up to 1000 seconds are possible
♦ photography through microscopes
♦ autoguiding camera (autoguiding port exists)

Features of the ZWO ASI178MC camera:


♦ universally applicable
♦ easy adaption by T2 thread connection
♦ resolution: 3096x2080 at
♦ 30 fps @ 14bit ADC or 60 fps @ 10bit ADC
♦ long-time exposure possible up to 1000 seconds
♦ autoguider port
♦ extremely low readout noise at very high sensitivity
♦ aluminium housing with 2″ and T2 connection

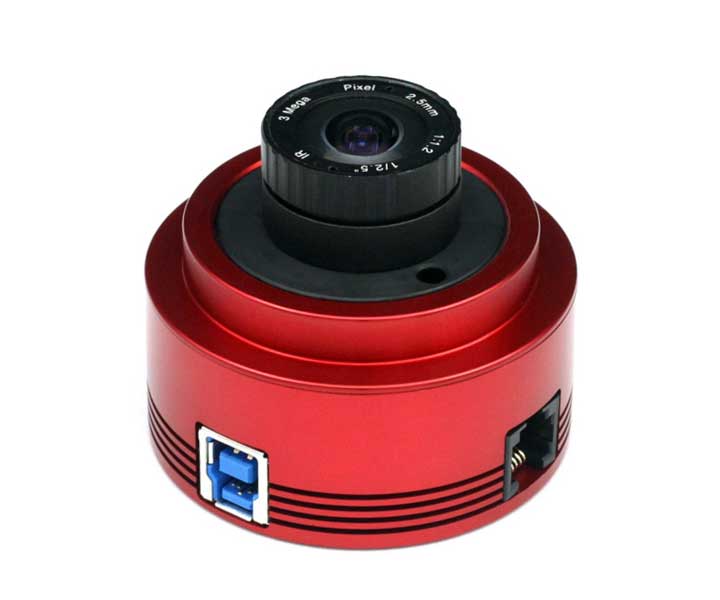

♦ with 2.5 mm all-sky wide-angle lens
♦ comes with IR blocking filter - no additional IR-cut filter necessary

Downloads


On the supplied CD, there are two programms: FireCapture and SharpCap. These two software programs are freeware, the newest versions can be downloaded from the manufacuturer´s websites.

Manuals for ZWO products - English

Drivers and Software



Sensor: 1/1.8” CMOS IMX178
Resolution: 6.4 Mega Pixels 3096*2080
Pixel Size: 2.4 µm
Sensor Size: 7.4 mm * 5 mm
Diagonal: 8.92 mm
Exposure Range: 32 µs - 1000 s
ROI: Supported
ST4 Guider Port: Yes
Focus Distance to Sensor: 12.5 mm
Shutter Type: Rolling Shutter
Protection Window: IR-CUT window
Operating System Compatibility: Mac, Windows, Linux
Interface: USB3.0/USB2.0
Bit resolution: 14 bit output (14 bit ADC)
Adaptor: 2″ / 1.25″ / M42X0.75

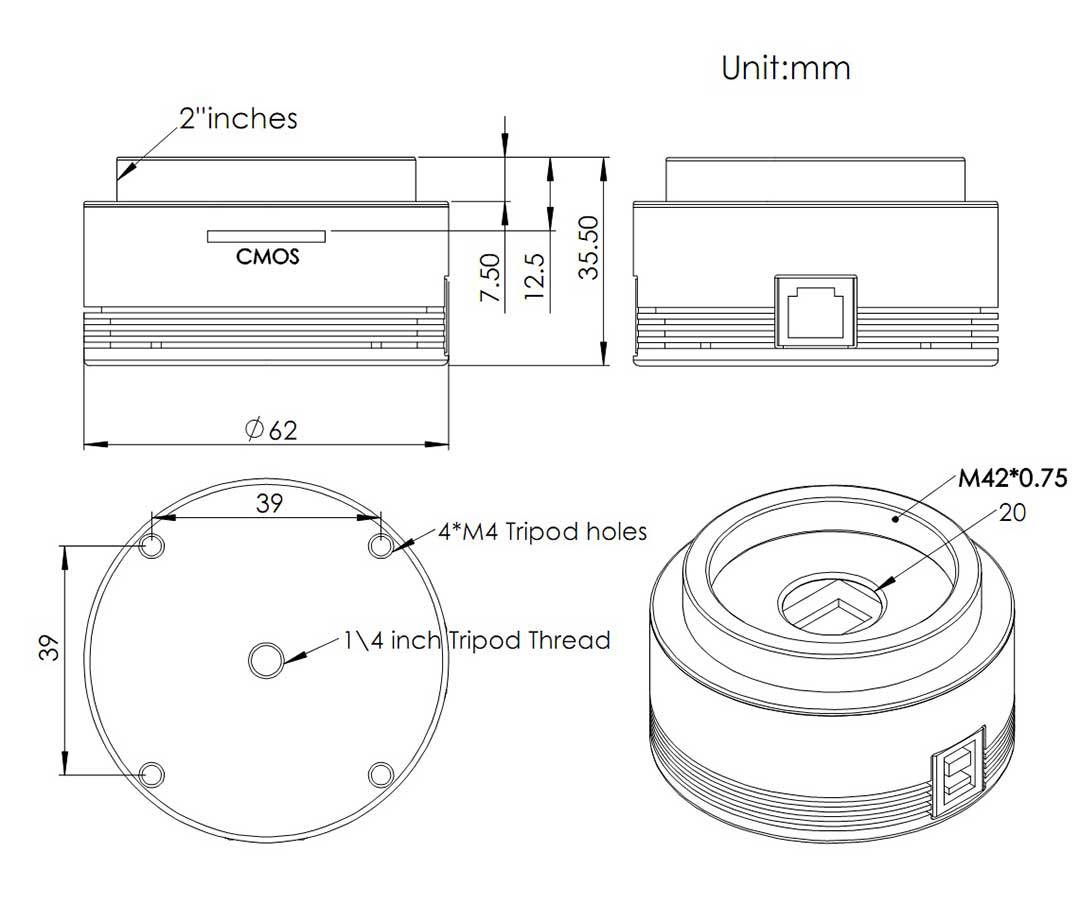

Dimension: ⌀62mm x 36mm
Weight: 120 g or 4.2 ounces (without lens)
Working Temperature: -5 °C — 45 °C
Storage Temperature: -20 °C — 60 °C
Working Relative Humidity: 20% — 80%
Storage Relative Humidity: 20% — 95%
Obsah balení:
♦ ASI ZWO178MC
♦ 2.5 mm All-Sky Lens
♦ 1.2 metres USB Cable and ST4 Autoguider Cable
♦ Adapter from 1,25″ to T-thread
♦ English manual
