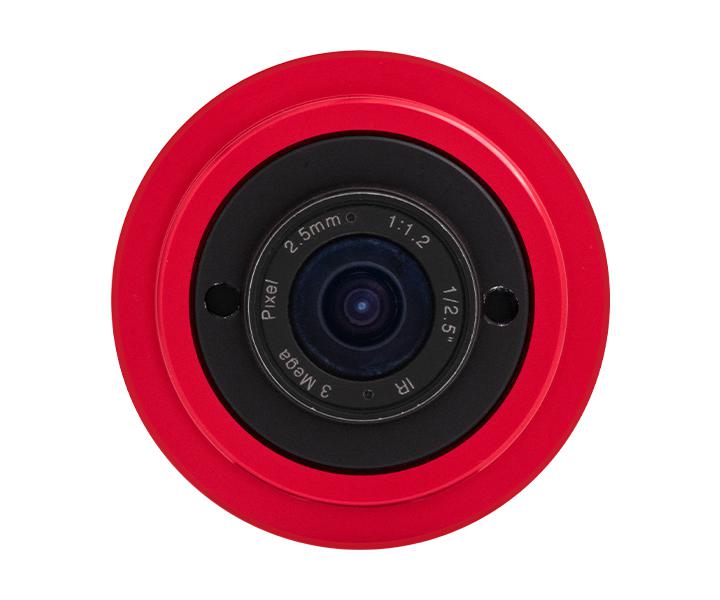

  • ZWO ASI678MC Color USB3.0 Astro Camera - Sensor D= 8.86 mm, 2.0 µm Pixel Size
  • ZWO ASI678MC Color USB3.0 Astro Camera - Sensor D= 8.86 mm, 2.0 µm Pixel Size

    • Číslo produktu: ASI678MC
    • Výrobce: ZWO
    • Váha dodávky: 0.126 kg

    Cena s DPH: 10 995,-
    1-2 týdny
    Hlídat dostupnost - ZWO ASI678MC Color USB3.0 Astro Camera - Sensor D= 8.86 mm, 2.0 µm Pixel Size
    Chci být informován až bude zboží skladem

    *

  • Tento produkt je dostupný také v následujících variantách:
     Barevná kamera ZWO ASI715MC Color USB3.0 Astro Camera - Sensor D=6.45 mm, 1.45 µm Pixels 7 750 Kč
     ZWO ASI224MC Color Camera 1,2M Pixel - Sensor D=6,09 mm 8 895 Kč
     ZWO ASI662MC Color USB3.0 Astro Camera - Sensor D=6.45 mm, 2.90 µm Pixels 9 395 Kč
     ZWO ASI678MC Color USB3.0 Astro Camera - Sensor D= 8.86 mm, 2.0 µm Pixel Size 10 995 Kč
     Barevná kamera ZWO ASI385 USB3.0 Color CMOS Camera - Chip D=8.35 mm 11 395 Kč
     ZWO ASI178 USB3.0 Color CMOS Camera - Chip D=8.92 mm 11 715 Kč
     Barevná kamera ZWO ASI482MC USB3.0 Color CMOS Camera - Sensor D= 12.86 mm, 5.8 µm Pixel Size 13 995 Kč
     ZWO ASI585MC Color USB3.0 Astro Camera - Sensor D=12.84 mm, 2.9 µm Pixel Size 13 995 Kč

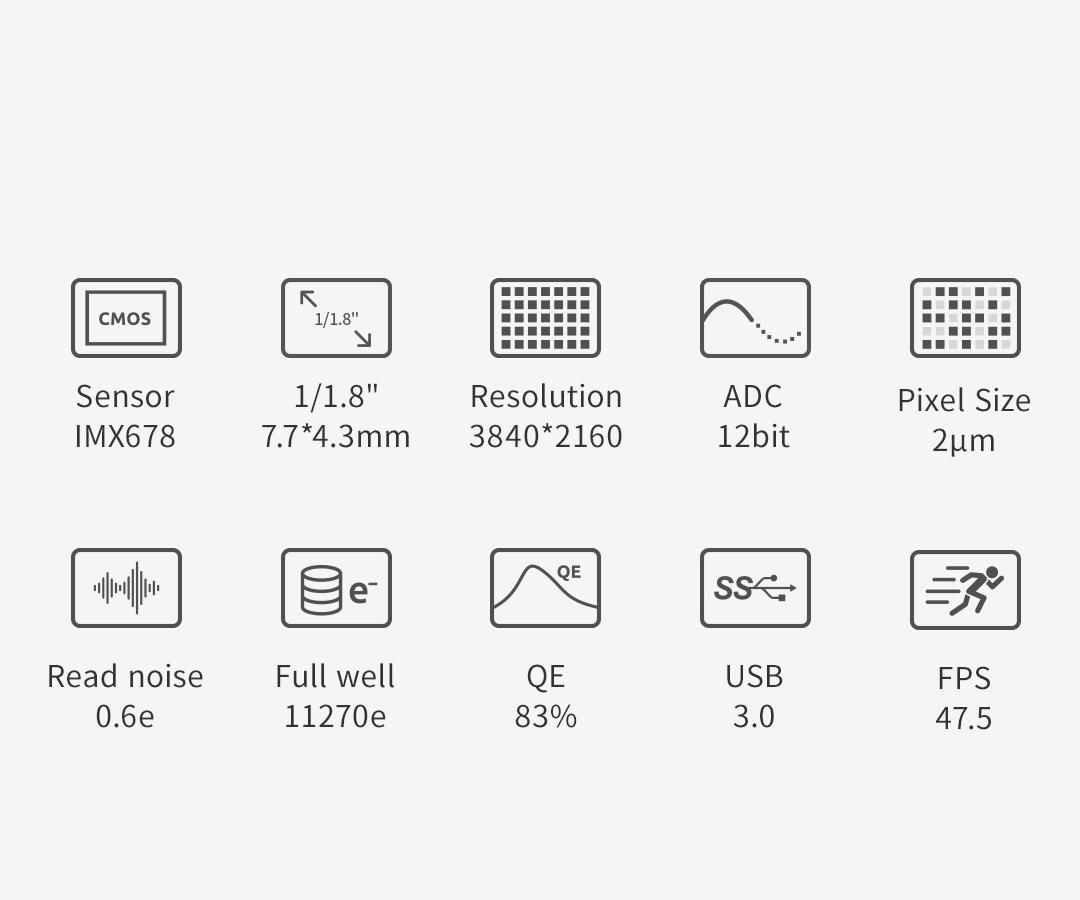

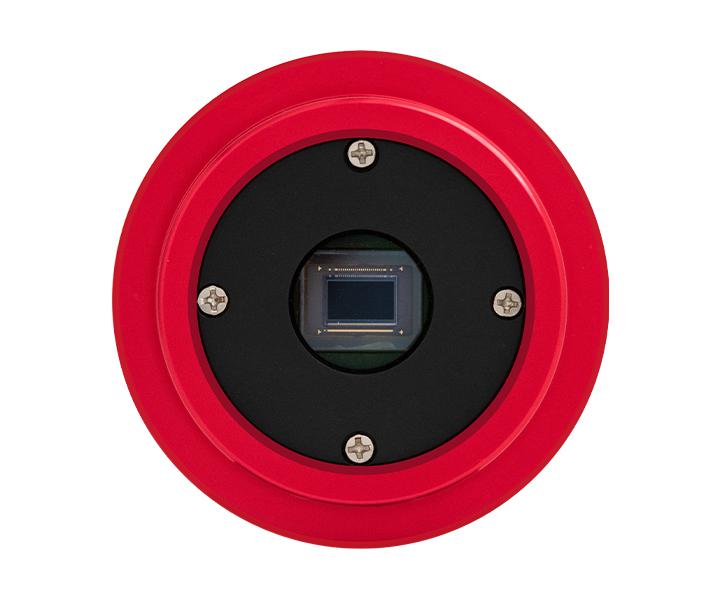

Sensor: Sony 1/1.8" CMOS IMX678AAQR1-C color sensor
Resolution: 3840*2160 pixels, 8.29 megapixels
Pixel size: 2.0 µm
Sensor size: 7.68 mm x 4.32 mm
Diagonal: 8.86 mm (1/1.8")
Recording speed: up to 47.5 fps at 10 bit
Exposure time: from 32 µs - 2000 s
ROI: Supported
ST4 autoguider port: Yes
Distance from T2 thread to sensor: 12.5 mm
Shutter type: Rolling shutter
Protection window: AR coated, full IR transmission

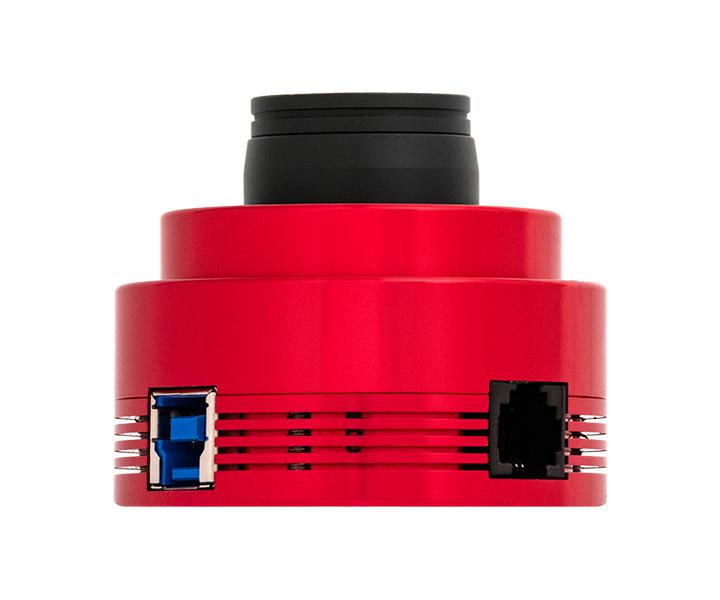

Connector: USB3.0/USB2.0

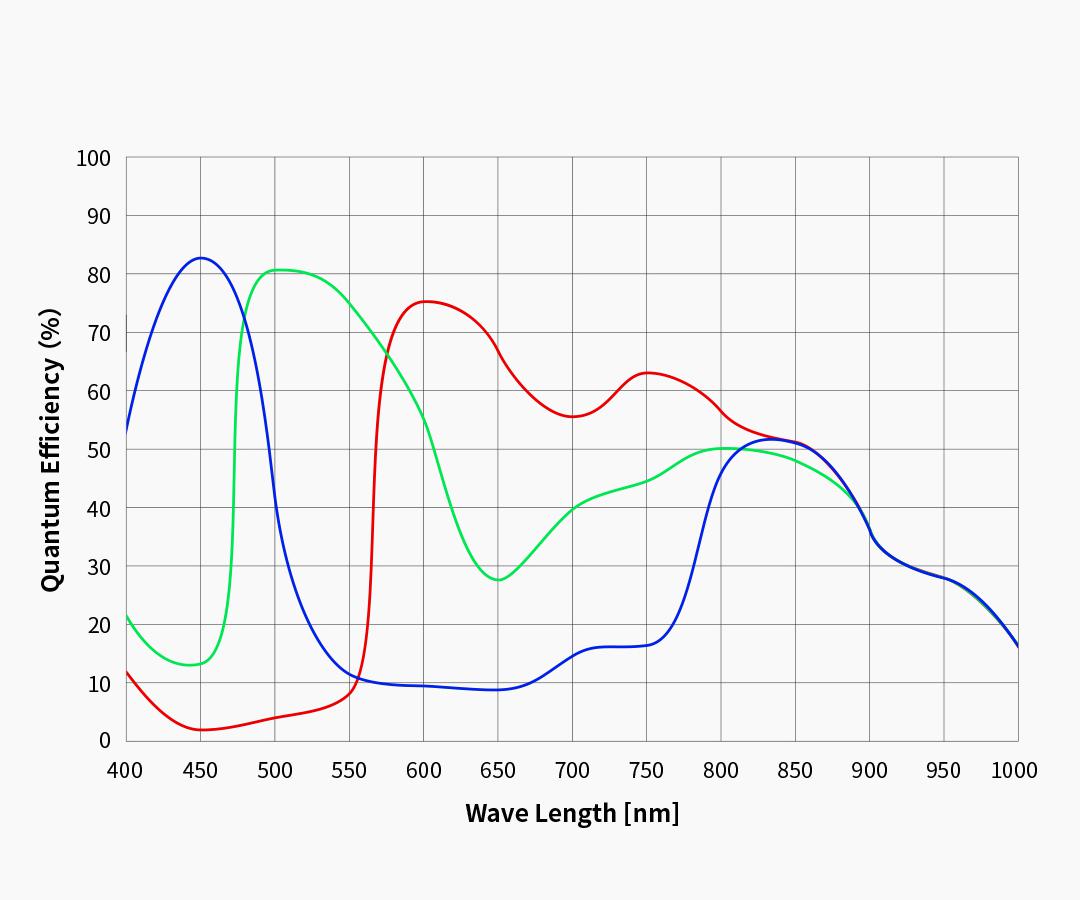

QE: ~83%
Full well: 11.27 ke-

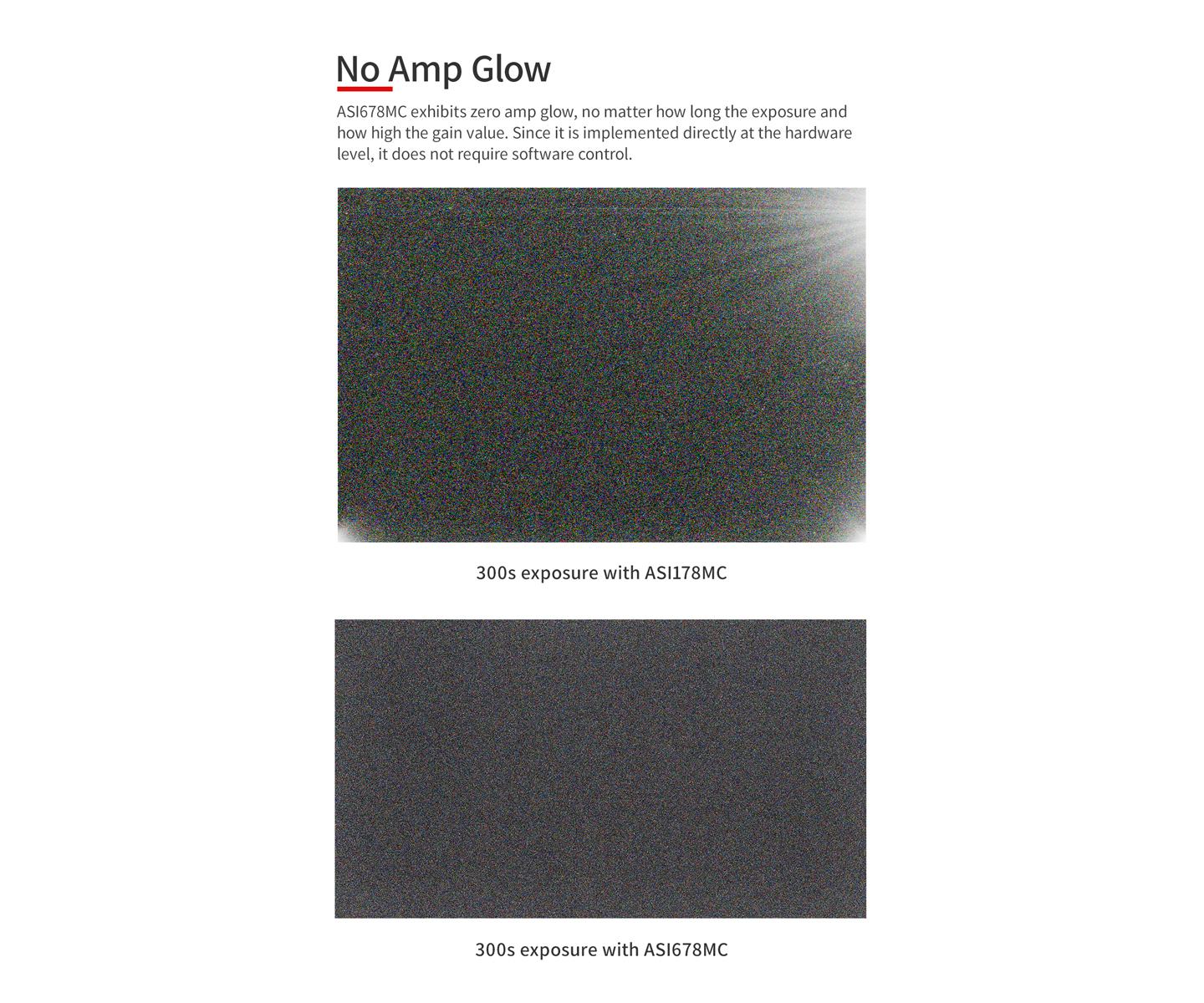

Anti amp glow circuit: Yes
Readout noise: 2.7 e- to 0.6 e-
Bit resolution: 12 bit ADC
Telescope connection: M42X0.75 / 2″ / 1,25″ (via adapter)

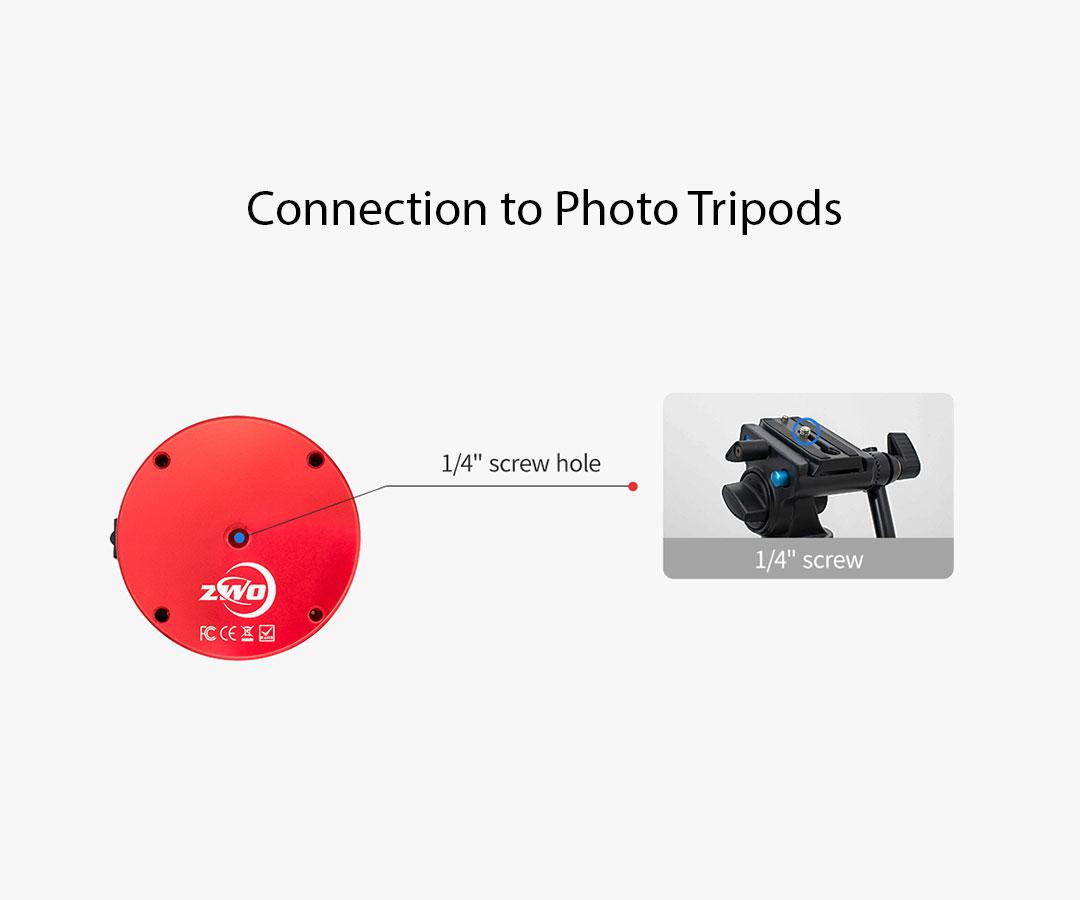

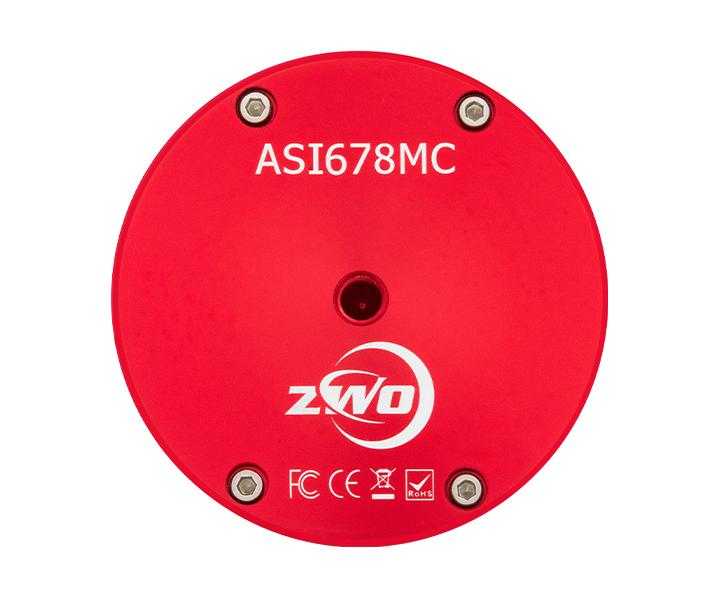

Tripod thread: 1/4" at the rear side

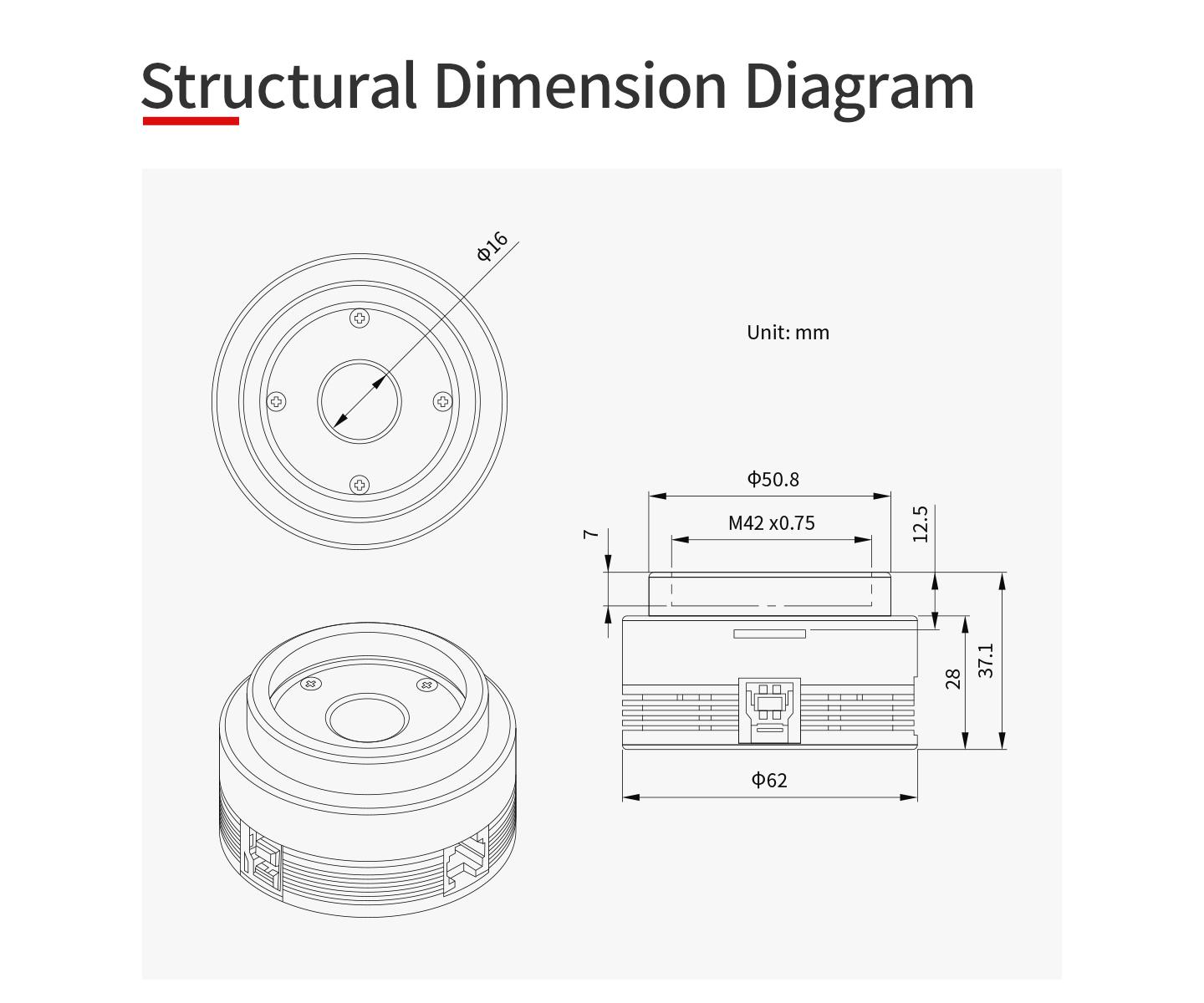

Dimensions: ⌀ 62 mm x 37.1 mm (without lens)
Weight: 126 g
Working temperature: -5 °C to +50 °C
System requirements: USB 3.0 should be supported by the operating system - Windows 8 and above, Mac OS X 10.8, Linux kernel 2.6.31 (Ubuntu 16.04 and above)
Weight: 126 g
Obsah balení:
ASI camera
Adapter T2 (M42x0.75) on 1,25″
1,25″ cover
Adapter T2 to CS mount (mounted)
Wide field lens (mounted)
USB 3.0 cable
ST4 cable
Quick Start Guide
