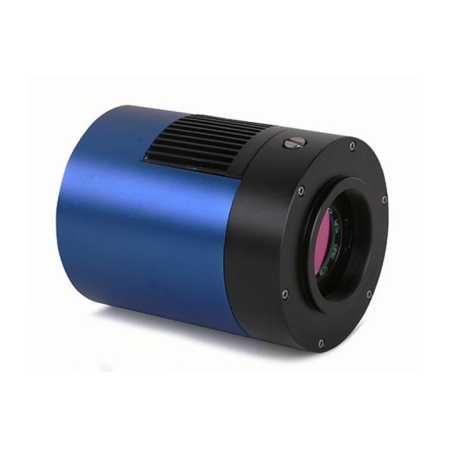

TS Optics ToupTek MONO Astro Camera 492MP Sony IMX492 Sensor D=23.1 mm

TS 492MP Monochrome Astro Camera

The camera with the powerful Sony IMX492 back-illuminated sensor allows astrophotography on a very high level. This modern sensor can be used for all areas of astrophotography. The 4.63 m pixels make this camera an all-rounder with highest sensitivity for short exposure times.
For extreme resolution, the TS492MP can be switched to Unlocked mode. The light sensitivity then drops to a quarter, but the pixel size is only a tiny 2.315 m - for the currently highest detail sharpness with this sensor size!
With our TSSky software, you can run the camera in multiple resolutions, including Unlocked mode:
8.0@8184*5616 (Unlocked)
33.3@4128*2808 (1x1 Bin)
69.5@2048*1080 (2x2 Bin)
96.2@1360*720 (3x3 Bin)
Another advantage is the sensational light sensitivity. The QE of 80% by the BACK ILLUMINATION technology already allow deep astro images with short exposure times. This makes the camera very well suited for deep sky photography.

Back-illumination technology:

Sony´s back-illuminated CMOS imaging sensor improves sensitivity and noise reduction - key factors in improving image quality - by changing the basic pixel structure from front- to back-illuminated. The advantages of CMOS image sensors, such as low power consumption and high operating speed, have been retained.
The back illumination improves the light acquisition and increases the amount of light at the same time. This makes significantly shorter exposure times possible and leads to an improved quantum efficiency of 80 %.
Sony has developed a unique photodiode structure and on-chip lens optimized for backside-exposed structures, this results in higher sensitivity and lower random noise without light by reducing noise, dark current and defective pixels compared to the conventional front-side-exposed structure.

Optimal support before and after purchase through Teleskop-Service

Through many years of experience, we can offer you optimal advice and also a very good after-sales service. We can perform almost all services at our premises. For a professional service we have among other things also a clean cabinet, where we can carry out repairs, cleaning etc. under dust exclusion.

Connection to correctors with M48 thread and 55 mm working distance with filter change

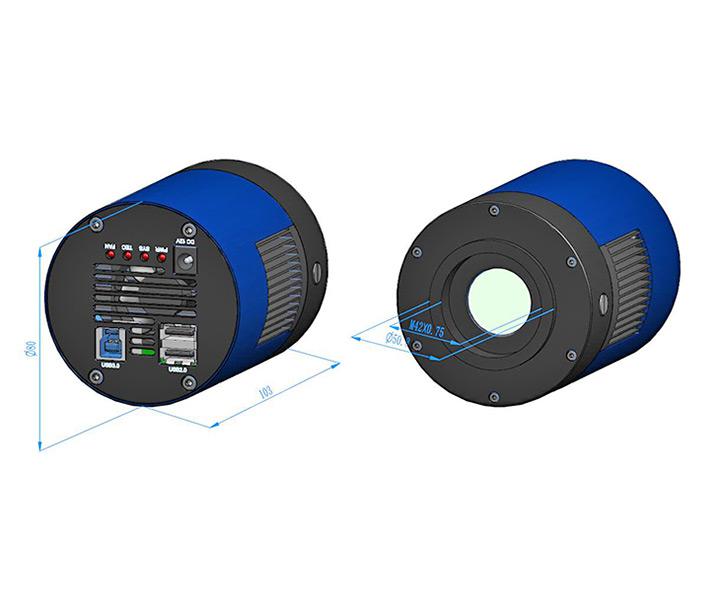

Most coma correctors or field flatteners for refractors have 55 mm working distance and a M48x0.75 thread on the camera side. Here you will find an interesting suggestion for the connection. The camera has a back focus of 17.5 mm from the T2 female thread. The adapters are from the camera to the corrector:
1. TSFSLM48T2 - filter drawer with T2 connection on the camera side and M48 thread on the telescope side.
2. TSVF220 - 20 mm M48 extension.
Total 55.5 mm flange focal distance - the 0.5 mm compensates well for the glass path of the filter - spot landing!!!

The manufacturer of the camera is ToupTek

As one of the largest manufacturers of professional cameras for digital photography, ToupTek brings the necessary knowledge for cameras that just work. Teleskop Service receives the cameras directly from the manufacturer, we are in direct contact with ToupTek to provide you with first class service.

Product video

Teleskop-Service has made an overview video for ToupTek´s cameras:
