  • Okulárový výtah TS Optics 2.5" RAP focuser with M86x1 telescope mount
  • Okulárový výtah TS Optics 2.5" RAP focuser with M86x1 telescope mount

    • Číslo produktu: RAP25DEL
    • Výrobce: TS Optics
    • Váha dodávky: 1.195 kg

    Cena s DPH: 8 395,-
    1-2 týdny
    Hlídat dostupnost - Okulárový výtah TS Optics 2.5" RAP focuser with M86x1 telescope mount
    Chci být informován až bude zboží skladem

    *

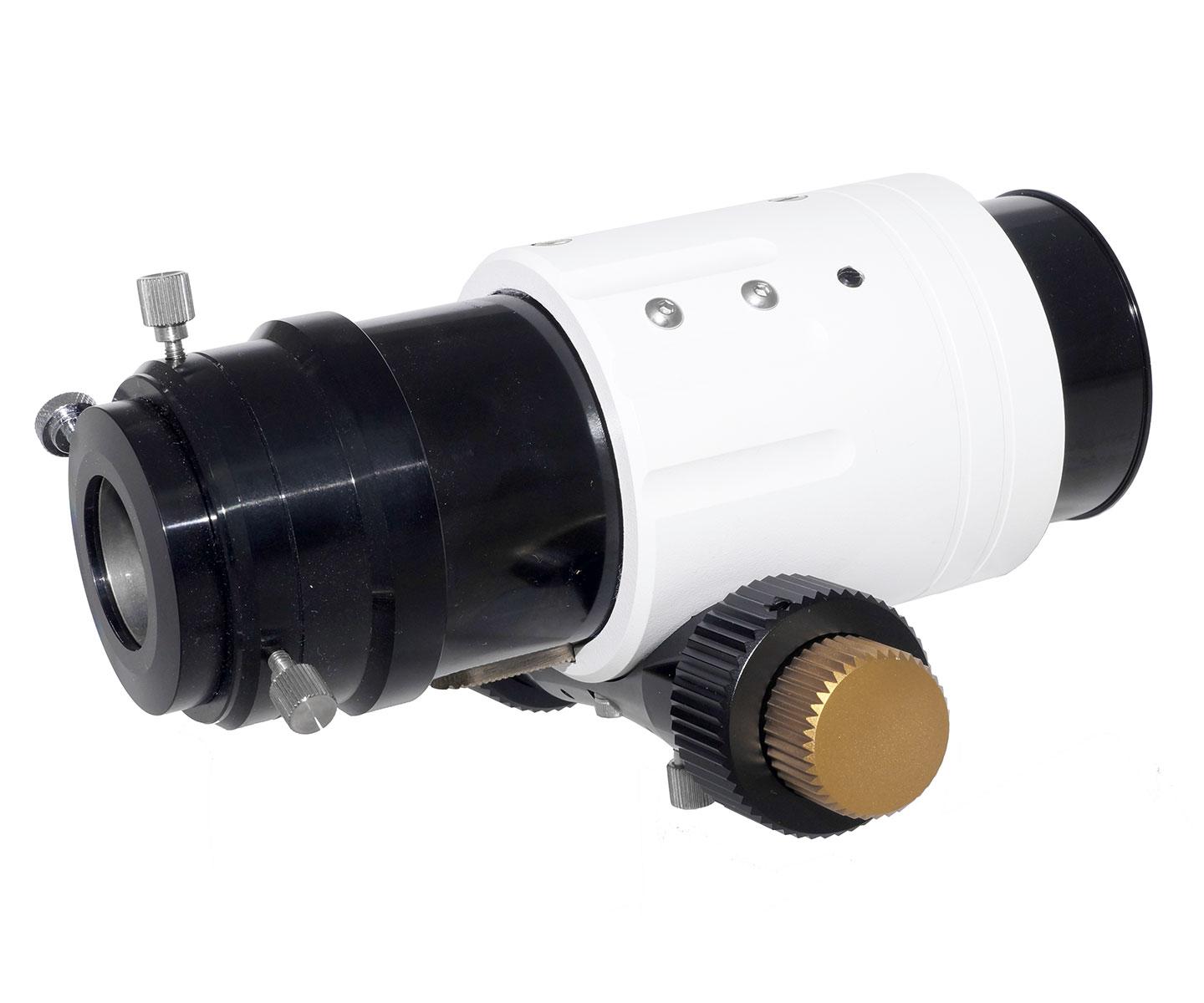

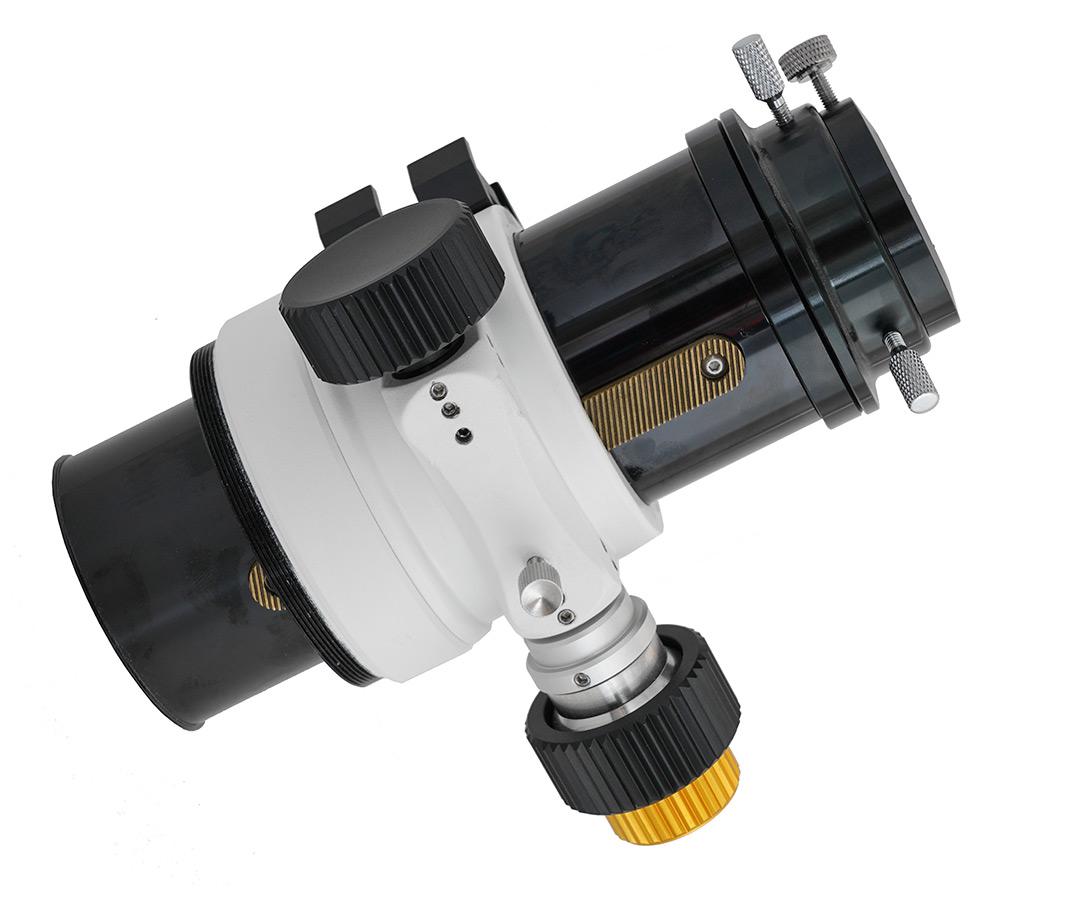

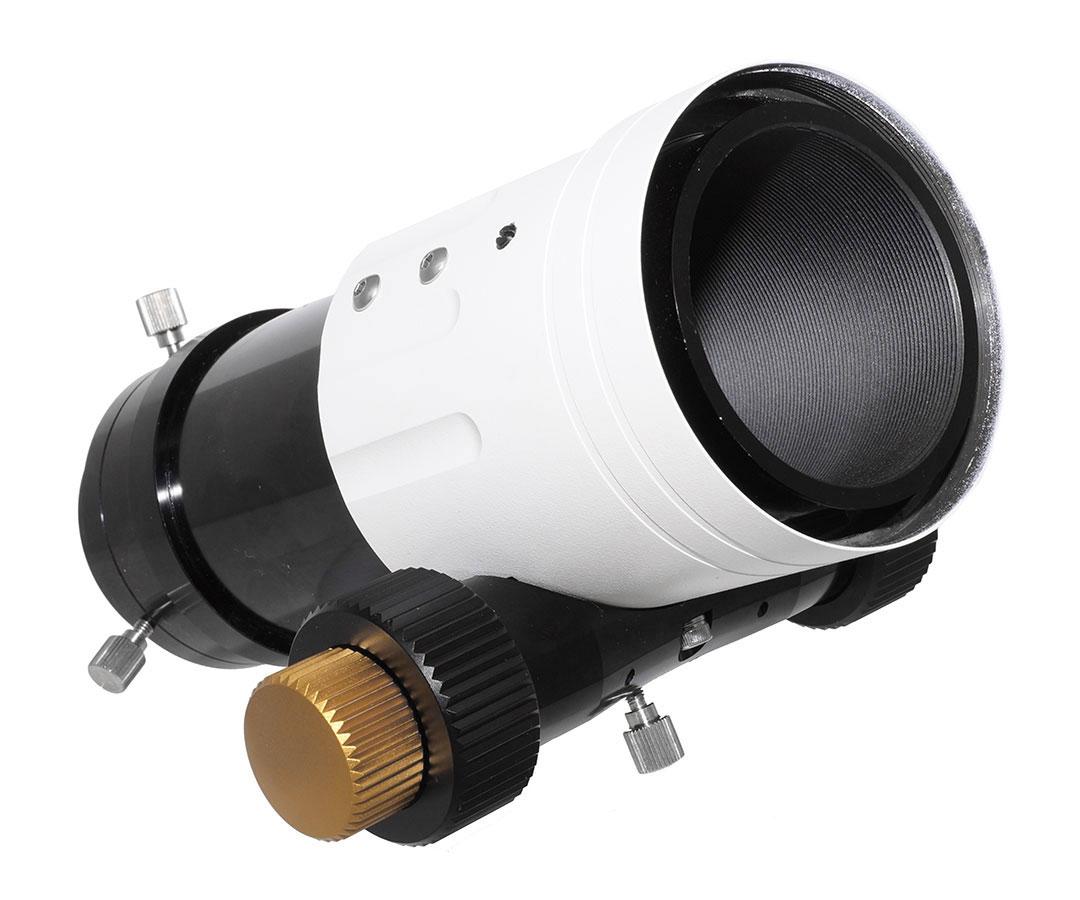

TS-Optics 2.5" deluxe focuser with RAP adjustment

The focuser is superior to conventional Crayford focusers. The bearing of the focuser tube and the adjustment are decoupled from each other. This allows for a stiffer bearing and yet very sensitive adjustment even at maximum payload.

The Rack And Pinion drive

A conventional Crayford focuser works with contact pressure. The weaker the pressure, the smoother the slide, although there is always a risk of slippage because adjustment and bearing are combined.
This focuser is completely different: The tube is ball bearing mounted. The bearing is optimized for maximum rigidity. The extension tube is driven by a helical toothed rack. The advantage is absolutely jerk-free adjustment.
The clamping of the focuser position has also been optimized. There is no clamping screw that simply presses on the drawtube, instead the position of the drive is locked. This ensures that the focus position is maintained 100%.

Individual adaptation to your telescope:

We will be happy to manufacture an individual telescope adaptation for you. Please use our special adapter Sonder125 for ordering (see recommended accessories).

Focuser type: Rack & Pinion
Payload: 5 kg
telescope side connection: M86x1 male thread
eyepiece side connection: 2″, 1,25″ and M68x1 female thread
lowest height from M84 connection to 2″: 100 mm
travel: 90 mm
Weight: 1195 g

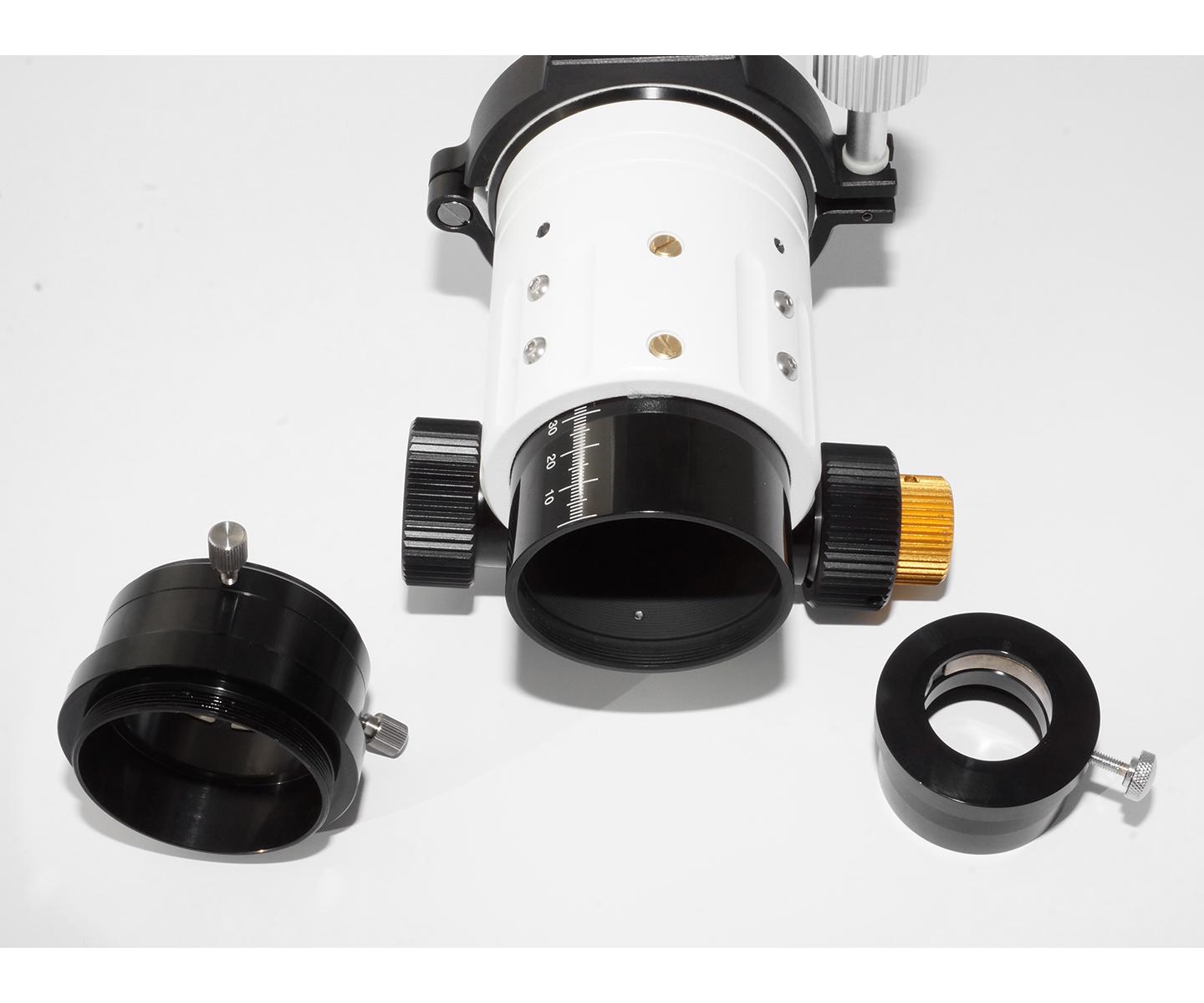

Obsah balení:
2.5" focuser
Reduction from M68 to 2″ with ring clamp
Reduction from 2″ to 1,25″ with ring clamp
