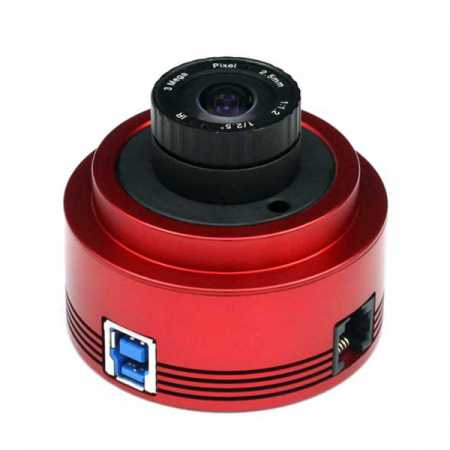

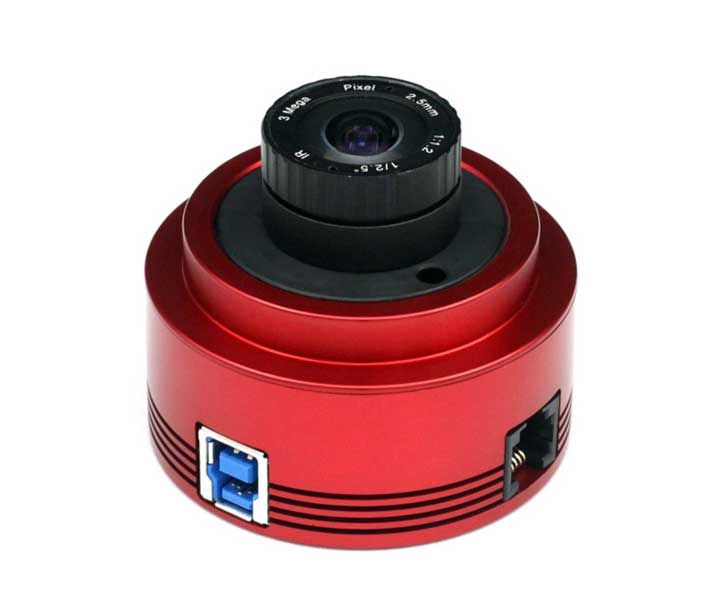

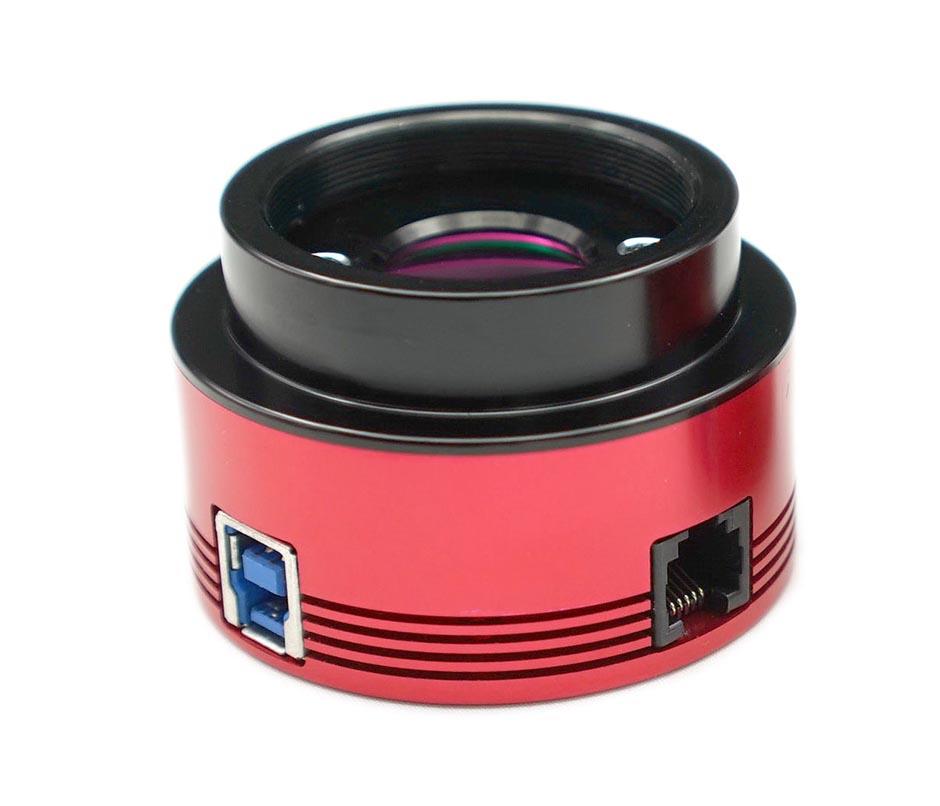

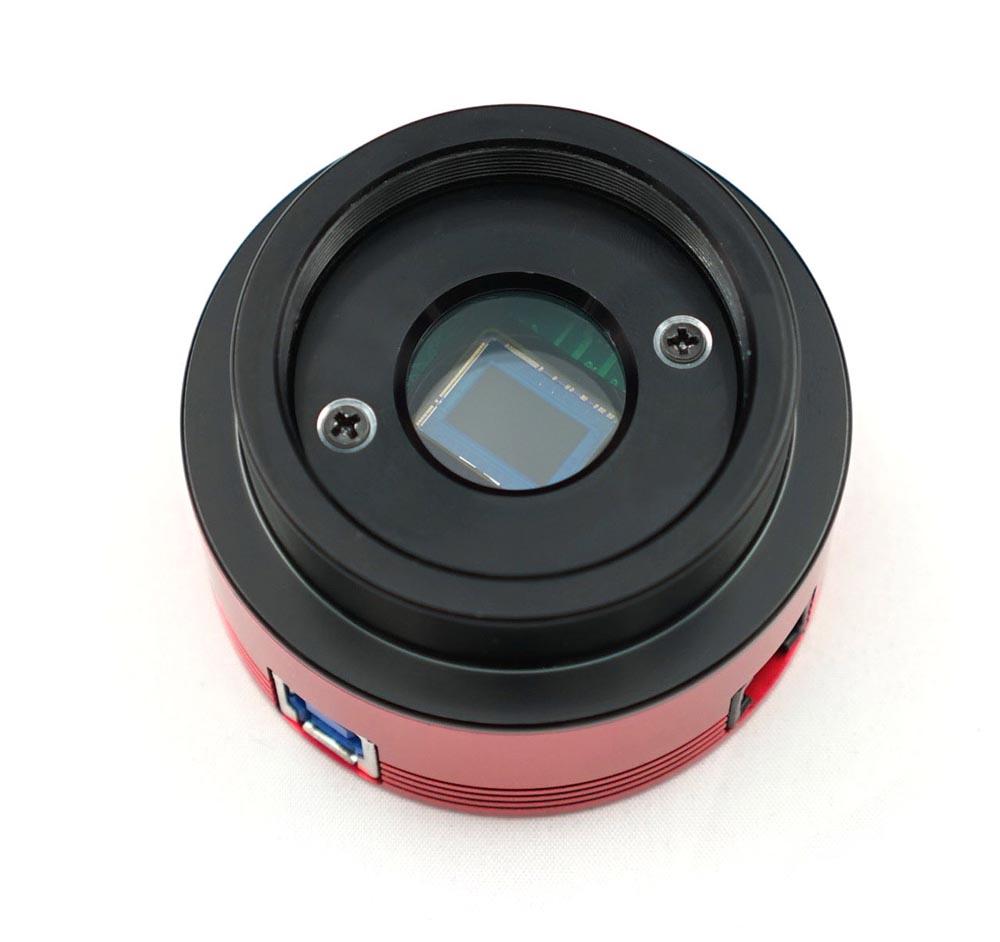

  • ZW Optical ASI290MM USB3.0 Monochrome Astro Camera - 2.1 MP CMOS

    • Číslo produktu: ASI290MM
    • Výrobce: ZWOptical

    Cena s DPH: 12 995,-
    3-4 týdny
    Hlídat dostupnost - ZW Optical ASI290MM USB3.0 Monochrome Astro Camera - 2.1 MP CMOS
    Chci být informován až bude zboží skladem

    *

    Doprava zdarma!
  • Tento produkt je dostupný také v následujících variantách:
     ZWO ASI290 Mini - High-sensitive Autoguider & Mono CMOS Camera 10995 Kč
     ZW Optical ASI290MM USB3.0 Monochrome Astro Camera - 2.1 MP CMOS 12995 Kč
     Monochromatická kamera ZWOptical ASI178MM 13995 Kč

ZWO ASI290MM USB 3.0 Mono Astro Camera with 2.1 MP CMOS sensor and 2.9 µm pixels

Like the other cameras, the ASI290 convinces with versatile application possibilities, like:

♦ Planetary photography - extremely high frame rates provide more material for stacking
♦ Lunar photography - due to the large sensor, nice overview images are possible
♦ Solar photography (with appropriate filtering)
♦ Deep-sky photography (the camera is uncooled, but the CMOS sensor offers a good noise performance)
♦ Autoguiding camera

Thanks to oaCapture, the camera can slso be used with a Mac.

Features and advantages of the ZWO ASI290MM camera:


♦ Universally applicable
♦ Easy adaption through T2-thread connector
♦ Resolution: 1936*1096 pixels
♦ 82 frames per second with 12 bit ADC or 170 frames per second with 10 bit ADC (each at full resolution)
♦ Time exposure possible up to 2000 seconds
♦ Autoguider interface
♦ Extremely low readout noise combined with very high sensitivity
♦ Aluminium housing with 2″ and T2 connection
♦ Comes with 2.5 mm all-sky wide-angle lens
♦ Comes with AR protection window - full transmission also in IR. If infrared should be blocked, an IR-cut filter is necessary.

Downloads


On the accompanying CD, there are two programs: FireCapture and SharpCap. Both software programs are freeware, the latest versions can be downloaded from the website of the manufacturer.

Manuals for ZWO products - English

Drivers and Software

System requirements

USB 3.0 should be present and supported by the operating system. Support is provided starting from

♦ Windows 8
♦ Mac OS X 10.8
♦ Linux Kernel 2.6.31



Sensor: 1/2.8" CMOS IMX291
Resolution: 2.1 megapixels, 1936*1096
Pixel size: 2.9 µm
Sensor diameter: 6.46 mm
Exposure time: from 32 µs - 2000 s
ROI: Supported
ST4 Guider Port: Yes
Radout noise: 1.0e- @30db gain
Max. frames per second (at full resolution): 170 FPS
Distance from T2-thread to sensor: 12.5 mm
Shutter type: Rolling Shutter
Operating system requirements: Mac, Windows, Linux
Electrical interface: USB3.0/USB2.0
Bit resolution: 12 bit Output (12 bit ADC)
Telescope connection: 2″ / 1.25″ / M42X0.75
Dimensions: ⌀ 62 mm x 36 mm
Weight: 120 g (without lens)
Operating temperature: -5 °C to +45 °C
System requirements: USB 3.0 should be supported by the operating system - starting from Windows 8, Mac OS X 10.8, Linux Kernel 2.6.31
Kompletace:
♦ ASI ZWO290MM
♦ 2.5 mm all-sky lens
♦ 1.2 metres USB cable and ST4 autoguider cable
♦ Adapter from 1,25″ receptacle to T-thread
♦ User manual
♦ Short guide in German
